Database Administration

Migrating a Docker MySQL 8.0 Database from CentOS to Ubuntu

📅 May 14, 2026 ✎ GetModNest Editor Tested on: MySQL, Docker, Linux Level: Intermediate

Overview

This article walks through a practical MySQL migration from a Docker-based source database on CentOS to a target MySQL environment on Ubuntu.

The source database runs inside a Docker container named 1Panel-mysql-DId8. The target server is an Ubuntu host. The migration uses mysqldump, scp, and a normal MySQL import.

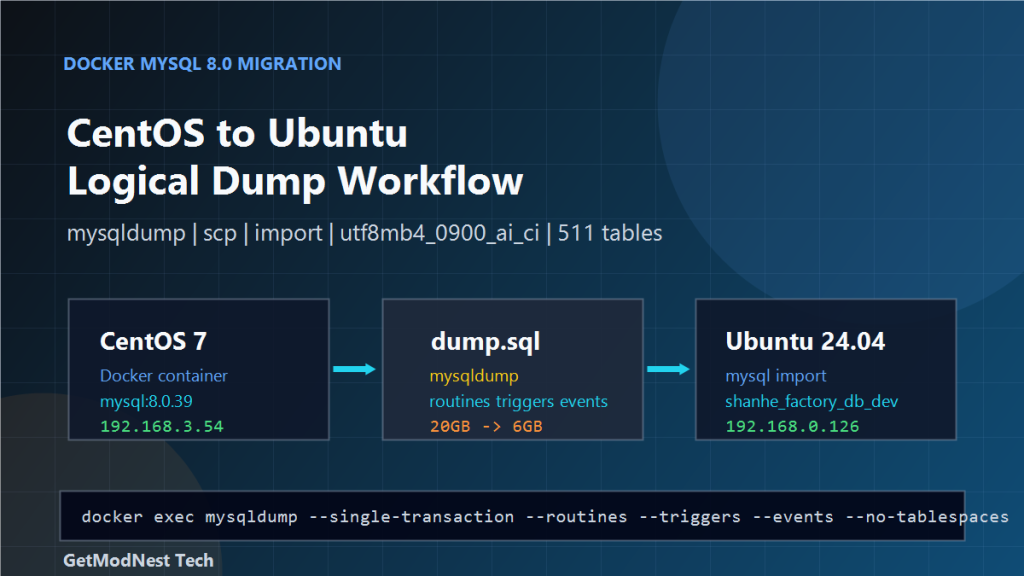

CentOS Docker MySQL source
  -> mysqldump logical backup
  -> scp transfer
  -> Ubuntu MySQL import
  -> validation

The database involved in the migration is:

shanhe_factory_db_dev

Environment

  • Source operating system: CentOS 7
  • Target operating system: Ubuntu 24.04
  • Source database container: 1Panel-mysql-DId8
  • Source MySQL image: mysql:8.0.39
  • Source MySQL port mapping: 0.0.0.0:3306 -> 3306
  • Source server IP: 192.168.3.54
  • Target server IP: 192.168.0.126
  • Export method: mysqldump inside Docker
  • Transfer method: scp
  • Import method: mysql client on Ubuntu
  • Dump file path on source: /mnt/sdc-mysql/dump.sql

The main objective is to preserve database structure, data, routines, triggers, events, character set, and collation during the migration.

Step 1: Check Basic System Information

Before starting the migration, confirm the operating system and kernel information on both servers.

uname -a
cat /etc/redhat-release
cat /etc/os-release

In this environment:

Source server: CentOS 7
Target server: Ubuntu 24.04

Step 2: Check Network Information

Check the IP address on each server:

ip addr

The working addresses were:

Source server IP: 192.168.3.54
Target server IP: 192.168.0.126

The two servers must be able to reach each other through SSH and, if direct database access is needed, MySQL port 3306.

Step 3: Check the MySQL Version

mysql -V

Inside MySQL, the server version can also be checked with:

SELECT VERSION();

For this source container, the image was:

mysql:8.0.39

Keeping the target MySQL version close to the source version reduces migration risk.

Step 4: Confirm Docker Status on the Source Server

systemctl status docker
docker version
docker ps

The source container information was:

Container ID: bcd007f907d
Container name: 1Panel-mysql-DId8
Image: mysql:8.0.39
Port: 0.0.0.0:3306 -> 3306

The container name is important because it is used by docker exec during database inspection and export.

Step 5: Enter the Source MySQL Container

docker exec -it 1Panel-mysql-DId8 mysql -u shanhe_factory_db_dev -p

Depending on how the container was created, the login user may be an application user or root.

If the application user does not have enough privileges for full export, use a privileged MySQL account for the dump operation.

Step 6: Inspect the Source Database

Count the number of tables in the database:

SELECT COUNT(*)
FROM information_schema.tables
WHERE table_schema = 'shanhe_factory_db_dev';

The source environment had:

511 tables

This count is useful as a quick comparison after importing data on the target server.

Step 7: Check Character Set and Collation

SHOW VARIABLES LIKE 'character_set%';
SHOW VARIABLES LIKE 'collation%';
SHOW CREATE DATABASE shanhe_factory_db_dev;

The observed settings were:

Character set: utf8mb4
Collation: utf8mb4_0900_ai_ci

This is important when importing into another MySQL 8.0 environment. If the target server is older or uses MariaDB, utf8mb4_0900_ai_ci may not be supported.

Step 8: Export the Database with mysqldump

docker exec -i 1Panel-mysql-DId8 mysqldump \
  -u shanhe_factory_db_dev \
  -p shanhe_factory_db_dev \
  --default-character-set=utf8mb4 \
  --single-transaction \
  --routines --triggers --events \
  --set-charset \
  --no-tablespaces \
  shanhe_factory_db_dev \
  > /mnt/sdc-mysql/dump.sql

Important options:

  • --default-character-set=utf8mb4 keeps export encoding explicit.
  • --single-transaction avoids locking InnoDB tables for a long time.
  • --routines --triggers --events includes database program objects.
  • --set-charset writes character set statements into the dump.
  • --no-tablespaces avoids tablespace-related privilege or compatibility errors.

The dump size changed significantly after export optimization:

Before: about 20 GB
After:  about 6 GB

Step 9: Transfer the Dump File to Ubuntu

scp -C /mnt/sdc-mysql/dump.sql shanhe@192.168.0.126:/home/shanhe/

The -C option enables compression during transfer.

ls -lh /home/shanhe/dump.sql

Step 10: Prepare the Target Database on Ubuntu

CREATE DATABASE shanhe_factory_db_dev
  DEFAULT CHARACTER SET utf8mb4
  COLLATE utf8mb4_0900_ai_ci;

If the database already exists and is safe to replace, drop and recreate it only after confirming that no required data will be lost.

Step 11: Import the Dump on Ubuntu

cd /home/shanhe
mysql -uroot -p shanhe_factory_db_dev < dump.sql

If the dump includes CREATE DATABASE and USE statements, it can also be imported without specifying the database name:

mysql -uroot -p < dump.sql

For a large import, run the command inside screen or tmux to avoid interruption when the SSH session disconnects.

Step 12: Validate the Import

SELECT COUNT(*)
FROM information_schema.tables
WHERE table_schema = 'shanhe_factory_db_dev';

Compare it with the source count:

Source table count: 511
Target table count: should match source

Check database character set and collation:

SHOW CREATE DATABASE shanhe_factory_db_dev;
SHOW VARIABLES LIKE 'character_set%';
SHOW VARIABLES LIKE 'collation%';

If the application has key business tables, run targeted row counts and sample queries against those tables as well.

Step 13: Common Migration Problems

Permission Error During Dump

If the dump user lacks privileges for routines, triggers, events, or tablespaces, the export may fail.

Unsupported Collation on Target

If the target is not MySQL 8.0, utf8mb4_0900_ai_ci may fail during import.

Large Dump Transfer Is Slow

Use scp -C, compress the dump, or transfer through a faster internal network path.

Import Takes Too Long

Run the import in tmux, monitor disk usage, and avoid killing the session midway.

Docker Volume Path Is Wrong

When dumping from a container to the host, make sure the redirected path is on the host side.

/mnt/sdc-mysql/dump.sql

Step 14: Recommended Verification Checklist

  1. Source OS and target OS are confirmed.
  2. Source and target IP addresses are confirmed.
  3. Docker service is running on the source server.
  4. Source MySQL container name is confirmed.
  5. Source MySQL version is checked.
  6. Source database table count is recorded.
  7. Source character set and collation are recorded.
  8. mysqldump includes routines, triggers, and events.
  9. Dump file is transferred successfully to Ubuntu.
  10. Target database is created with compatible character set and collation.
  11. Import finishes without fatal errors.
  12. Target table count matches the source.
  13. Application key tables pass sample validation.
  14. Application connection settings are switched only after validation.

Final Conclusion

The Docker MySQL 8.0 migration from CentOS to Ubuntu was completed through a logical dump workflow.

The key steps were to inspect the source environment, confirm Docker and container details, verify table count and character set, export the database with mysqldump, transfer the dump with scp, import it into Ubuntu, and validate the target database.

For this migration, the most important technical points were preserving utf8mb4, keeping the utf8mb4_0900_ai_ci collation for MySQL 8.0 compatibility, including routines, triggers, and events, and comparing table counts before and after import.

This approach is straightforward and reliable for controlled database migration windows where a logical backup and restore can be completed within the allowed downtime.
